| 不帶Y閥型號規格 | |||
| 頭端 | 尺寸 (Fr) |
有效長度 （mm） |
規格 |
A |
4 | 450 | QB040450A |
| 550 | QB040550A | ||
| 700 | QB040700A | ||
| 900 | QB040900A | ||
| 1100 | QB041100A | ||
| 5 | 450 | QB050450A | |
| 550 | QB050550A | ||
| 700 | QB050700A | ||
| 900 | QB050900A | ||
| 1100 | QB051100A | ||
| 6 | 450 | QB060450A | |
| 550 | QB060550A | ||
| 700 | QB060700A | ||
| 800 | QB060800A | ||
| 900 | QB060900A | ||
| 1100 | QB061100A | ||
| 7 | 450 | QB070450A | |
| 550 | QB070550A | ||
| 700 | QB070700A | ||
| 800 | QB070800A | ||
| 900 | QB070900A | ||
| 1100 | QB071100A | ||
| 8 | 450 | QB080450A | |
| 550 | QB080550A | ||
| 700 | QB080700A | ||
| 9 | 450 | QB090450A | |
| 550 | QB090550A | ||
| 700 | QB090700A | ||
| 10 | 450 | QB100450A | |
| 12 | 450 | QB120450A | |
B |
6 | 400 | QB060400B |
| 7 | 400 | QB070400B | |
| 8 | 400 | QB080400B | |
C |
4 | 550 | QB040550C |
| 700 | QB040700C | ||
| 5 | 450 | QB050450C | |
| 550 | QB050550C | ||
| 700 | QB050700C | ||
| 900 | QB050900C | ||
| 6 | 450 | QB060450C | |
| 550 | QB060550C | ||
| 700 | QB060700C | ||
| 900 | QB060900C | ||
| 7 | 450 | QB070450C | |
| 550 | QB070550C | ||
| 700 | QB070700C | ||
| 8 | 450 | QB080450C | |
| 550 | QB080550C | ||
| 700 | QB080700C | ||
| 9 | 450 | QB090450C | |
| 10 | 450 | QB100450C | |
| 12 | 450 | QB120450C | |
D |
5 | 450 | QB050450D |
| 6 | 450 | QB060450D | |
| 7 | 450 | QB070450D | |
| 帶Y閥型號規格 | |||
| 頭端 | 尺寸 (Fr) |
有效長度 （mm） |
規格 |
A |
4 | 900 | QD040900A |
| 1100 | QD041100A | ||
| 5 | 900 | QD050900A | |
| 1100 | QD051100A | ||
| 6 | 800 | QD060800A | |
| 900 | QD060900A | ||
| 1100 | QD061100A | ||
| 7 | 800 | QD070800A | |
| 900 | QD070900A | ||
| 1100 | QD071100A | ||
| 8 | 900 | QD080900A | |
B |
6 | 450 | QD060450B |
| 7 | 450 | QD070450B | |

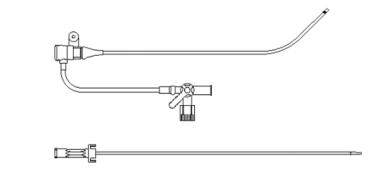

C |
5 | 550 | QD050550C |
| 6 | 550 | QD060550C | |
| 7 | 550 | QD070550C | |

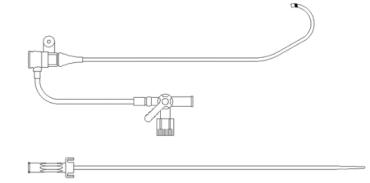

D |
5 | 550 | QD050550D |
| 6 | 550 | QD060550D | |
| 7 | 550 | QD070550D | |
